pCAG HRP-TM

价格:1200元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

载体基本信息

质粒名称: pCAG HRP-TM
出品公司: 爱迪基因
目录编号: 44441
存储实验室: Alice Ting

载体骨架基本信息
载体名称: pCAG
载体出品公司: --
载体抗性: 氨苄青霉素
空载体大小: 5508 bp
完整质粒大小: --
载体修饰: --
载体类型: 哺乳细胞表达
筛选标记: --
高拷贝/低拷贝: --
生长条件: 37 ℃

插入基因信息
插入基因名称: Horseradish peroxidase fused to the transmembrane domain of PDGFR
物种来源: Synthetic
插入大小: 1224 bp
基因突变: --
GenBank编号 --
启动子 CAG
标签/融合蛋白:
HA tag(插入件上的N端子)
myc tag(插入件上的C端子)
克隆方法: 限制性内切酶
5' 克隆位点: AgeI(未破坏)
3' 克隆位点: HindIII (未破坏)
5' 测序引物 pCAG-F
3' 测序引物 --

文献引用方法
材料和方法部分: pCAG HRP-TM was a gift from Alice Ting (Addgene plasmid # 44441 ; http://n2t.net/addgene:44441 ; RRID:Addgene_44441)
参考文献部分: Proteomic Mapping of Mitochondria in Living Cells via Spatially Restricted Enzymatic Tagging. Rhee HW, Zou P, Udeshi ND, Martell JD, Mootha VK, Carr SA, Ting AY. Science. 2013 Jan 31. 10.1126/science.1230593 PubMed 23371551

载体图谱质粒图谱和多克隆位点信息

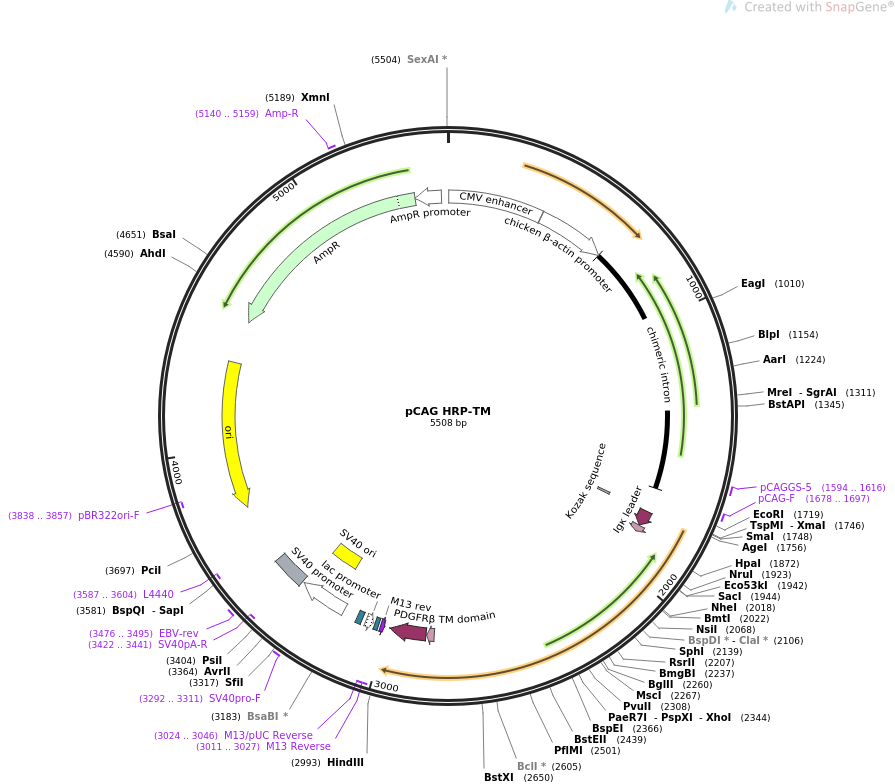

pCAG HRP-TM质粒图谱

载体简介

载体序列

LOCUS       pCAG HRP-TM                5508 bp ds-DNA     circular SYN 06-AUG-2018
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    pCAG HRP-TM
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 5508)
  AUTHORS   Rhee HW, Zou P, Udeshi ND, Martell JD, Mootha VK, Carr SA, Ting AY
  TITLE     Proteomic Mapping of Mitochondria in Living Cells via Spatially
            Restricted Enzymatic Tagging.
  JOURNAL   Science. 2013 Jan 31.
  PUBMED    23371551
REFERENCE   2  (bases 1 to 5508)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Aug 6, 2018 from SnapGene Server 1.1.58
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..5508
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     enhancer        4..383
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        386..661
                     /label=chicken beta-actin promoter
     intron          662..1670
                     /label=chimeric intron
                     /note="chimera between introns from chicken beta-actin and
                     rabbit beta-globin"
     primer_bind     1594..1616
                     /label=pCAGGS-5
                     /note="Chimeric intron in CAG promoter, forward primer"
     primer_bind     1678..1697
                     /label=pCAG-F
                     /note="Rabbit beta-globin intron, for pCAG plasmids,
                     forward primer"
     regulatory      1763..1772
                     /regulatory_class="other"
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
     CDS             1769..1831
                     /codon_start=1
                     /product="leader sequence from mouse immunoglobulin kappa
                     light chain"
                     /label=Ig-kappa leader
                     /translation="METDTLLLWVLLLWVPGSTGD"
     CDS             1832..1858
                     /codon_start=1
                     /product="HA (human influenza hemagglutinin) epitope tag"
                     /label=HA
                     /translation="YPYDVPDYA"
     CDS             2810..2839
                     /codon_start=1
                     /product="Myc (human c-Myc proto-oncogene) epitope tag"
                     /label=Myc
                     /translation="EQKLISEEDL"
     CDS             2843..2989
                     /codon_start=1
                     /product="transmembrane domain from platelet derived growth
                     factor receptor beta"
                     /label=PDGFR-beta TM domain
                     /translation="AVGQDTQEVIVVPHSLPFKVVVISAILALVVLTIISLIILIMLWQ
                     KKPR"
     primer_bind     complement(3011..3027)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     complement(3011..3027)
                     /label=M13 Reverse
                     /note="In lacZ gene. Also called M13-rev"
     primer_bind     complement(3024..3046)
                     /label=M13/pUC Reverse
                     /note="In lacZ gene"
     protein_bind    3035..3051
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(3059..3089)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    3104..3125
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     promoter        3184..3379
                     /label=SV40 promoter
                     /note="SV40 early promoter"
     rep_origin      3230..3365
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     3292..3311
                     /label=SV40pro-F
                     /note="SV40 promoter/origin, forward primer"
     polyA_signal    3385..3519
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(3422..3441)
                     /label=SV40pA-R
                     /note="SV40 polyA, reverse primer"
     primer_bind     3476..3495
                     /label=EBV-rev
                     /note="SV40 polyA terminator, reverse primer"
     primer_bind     complement(3587..3604)
                     /label=L4440
                     /note="L4440 vector, forward primer"
     rep_origin      complement(3758..4346)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     complement(3838..3857)
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     CDS             complement(4517..5377)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     5140..5159
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     promoter        complement(5378..5482)
                     /gene="bla"
                     /label=AmpR promoter
ORIGIN
        1 gtcgacattg attattgact agttattaat agtaatcaat tacggggtca ttagttcata
       61 gcccatatat ggagttccgc gttacataac ttacggtaaa tggcccgcct ggctgaccgc
      121 ccaacgaccc ccgcccattg acgtcaataa tgacgtatgt tcccatagta acgccaatag
      181 ggactttcca ttgacgtcaa tgggtggact atttacggta aactgcccac ttggcagtac
      241 atcaagtgta tcatatgcca agtacgcccc ctattgacgt caatgacggt aaatggcccg
      301 cctggcatta tgcccagtac atgaccttat gggactttcc tacttggcag tacatctacg
      361 tattagtcat cgctattacc atgggtcgag gtgagcccca cgttctgctt cactctcccc
      421 atctcccccc cctccccacc cccaattttg tatttattta ttttttaatt attttgtgca
      481 gcgatggggg cggggggggg gggggcgcgc gccaggcggg gcggggcggg gcgaggggcg
      541 gggcggggcg aggcggagag gtgcggcggc agccaatcag agcggcgcgc tccgaaagtt
      601 tccttttatg gcgaggcggc ggcggcggcg gccctataaa aagcgaagcg cgcggcgggc
      661 gggagtcgct gcgttgcctt cgccccgtgc cccgctccgc gccgcctcgc gccgcccgcc
      721 ccggctctga ctgaccgcgt tactcccaca ggtgagcggg cgggacggcc cttctcctcc
      781 gggctgtaat tagcgcttgg tttaatgacg gctcgtttct tttctgtggc tgcgtgaaag
      841 ccttaaaggg ctccgggagg gccctttgtg cgggggggag cggctcgggg ggtgcgtgcg
      901 tgtgtgtgtg cgtggggagc gccgcgtgcg gcccgcgctg cccggcggct gtgagcgctg
      961 cgggcgcggc gcggggcttt gtgcgctccg cgtgtgcgcg aggggagcgc ggccgggggc
     1021 ggtgccccgc ggtgcggggg ggctgcgagg ggaacaaagg ctgcgtgcgg ggtgtgtgcg
     1081 tgggggggtg agcagggggt gtgggcgcgg cggtcgggct gtaacccccc cctgcacccc
     1141 cctccccgag ttgctgagca cggcccggct tcgggtgcgg ggctccgtgc ggggcgtggc
     1201 gcggggctcg ccgtgccggg cggggggtgg cggcaggtgg gggtgccggg cggggcgggg
     1261 ccgcctcggg ccggggaggg ctcgggggag gggcgcggcg gccccggagc gccggcggct
     1321 gtcgaggcgc ggcgagccgc agccattgcc ttttatggta atcgtgcgag agggcgcagg
     1381 gacttccttt gtcccaaatc tggcggagcc gaaatctggg aggcgccgcc gcaccccctc
     1441 tagcgggcgc gggcgaagcg gtgcggcgcc ggcaggaagg aaatgggcgg ggagggcctt
     1501 cgtgcgtcgc cgcgccgccg tccccttctc catctccagc ctcggggctg ccgcaggggg
     1561 acggctgcct tcggggggga cggggcaggg cggggttcgg cttctggcgt gtgaccggcg
     1621 gctctagagc ctctgctaac catgttcatg ccttcttctt tttcctacag ctcctgggca
     1681 acgtgctggt tattgtgctg tctcatcatt ttggcaaaga attctgcagt cgacggtacc
     1741 gcgggcccgg gatccaccgg tcgccaccat ggagacagac acactcctgc tatgggtact
     1801 gctgctctgg gttccaggtt ccactggtga ctatccatat gatgttccag attatgctgg
     1861 ggcccagcag ttaaccccta cattctacga caatagctgt cccaacgtgt ccaacatcgt
     1921 tcgcgacaca atcgtcaacg agctcagatc cgatcccagg atcgctgctt caatattacg
     1981 tctgcacttc catgactgct tcgtgaatgg ttgcgacgct agcatattac tggacaacac
     2041 caccagtttc cgcactgaaa aggatgcatt cgggaacgct aacagcgcca ggggctttcc
     2101 agtgatcgat cgcatgaagg ctgccgttga gtcagcatgc ccacgaacag tcagttgtgc
     2161 agacctgctg actatagctg cgcaacagag cgtgactctt gcaggcggac cgtcctggag
     2221 agtgccgctc ggtcgacgtg actccctaca ggcattccta gatctggcca acgccaactt
     2281 gcctgctcca ttcttcaccc tgccccagct gaaggatagc tttagaaacg tgggtctgaa
     2341 tcgctcgagt gaccttgtgg ctctgtccgg aggacacaca tttggaaaga accagtgtag
     2401 gttcatcatg gataggctct acaatttcag caacactggg ttacctgacc ccacgctgaa
     2461 cactacgtat ctccagacac tgagaggctt gtgcccactg aatggcaacc tcagtgcact
     2521 agtggacttt gatctgcgga ccccaaccat cttcgataac aagtactatg tgaatctaga
     2581 ggagcagaaa ggcctgatac agagtgatca agaactgttt agcagtccaa acgccactga
     2641 caccatccca ctggtgagaa gttttgctaa ctctactcaa accttcttta acgccttcgt
     2701 ggaagccatg gaccgtatgg gtaacattac ccctctgacg ggtacccaag gccagattcg
     2761 tctgaactgc agagtggtca acagcaactc tccgcggctg caggtcgacg aacaaaaact
     2821 catctcagaa gaggatctga atgctgtggg ccaggacacg caggaggtca tcgtggtgcc
     2881 acactccttg ccctttaagg tggtggtgat ctcagccatc ctggccctgg tggtgctcac
     2941 catcatctcc cttatcatcc tcatcatgct ttggcagaag aagccacgtt agaagcttgg
     3001 cgtaatcatg gtcatagctg tttcctgtgt gaaattgtta tccgctcaca attccacaca
     3061 acatacgagc cggaagcata aagtgtaaag cctggggtgc ctaatgagtg agctaactca
     3121 cattaattgc gttgcgctca ctgcccgctt tccagtcggg aaacctgtcg tgccagcgga
     3181 tccgcatctc aattagtcag caaccatagt cccgccccta actccgccca tcccgcccct
     3241 aactccgccc agttccgccc attctccgcc ccatggctga ctaatttttt ttatttatgc
     3301 agaggccgag gccgcctcgg cctctgagct attccagaag tagtgaggag gcttttttgg
     3361 aggcctaggc ttttgcaaaa agctaacttg tttattgcag cttataatgg ttacaaataa
     3421 agcaatagca tcacaaattt cacaaataaa gcattttttt cactgcattc tagttgtggt
     3481 ttgtccaaac tcatcaatgt atcttatcat gtctggatcc gctgcattaa tgaatcggcc
     3541 aacgcgcggg gagaggcggt ttgcgtattg ggcgctcttc cgcttcctcg ctcactgact
     3601 cgctgcgctc ggtcgttcgg ctgcggcgag cggtatcagc tcactcaaag gcggtaatac
     3661 ggttatccac agaatcaggg gataacgcag gaaagaacat gtgagcaaaa ggccagcaaa
     3721 aggccaggaa ccgtaaaaag gccgcgttgc tggcgttttt ccataggctc cgcccccctg
     3781 acgagcatca caaaaatcga cgctcaagtc agaggtggcg aaacccgaca ggactataaa
     3841 gataccaggc gtttccccct ggaagctccc tcgtgcgctc tcctgttccg accctgccgc
     3901 ttaccggata cctgtccgcc tttctccctt cgggaagcgt ggcgctttct caatgctcac
     3961 gctgtaggta tctcagttcg gtgtaggtcg ttcgctccaa gctgggctgt gtgcacgaac
     4021 cccccgttca gcccgaccgc tgcgccttat ccggtaacta tcgtcttgag tccaacccgg
     4081 taagacacga cttatcgcca ctggcagcag ccactggtaa caggattagc agagcgaggt
     4141 atgtaggcgg tgctacagag ttcttgaagt ggtggcctaa ctacggctac actagaagga
     4201 cagtatttgg tatctgcgct ctgctgaagc cagttacctt cggaaaaaga gttggtagct
     4261 cttgatccgg caaacaaacc accgctggta gcggtggttt ttttgtttgc aagcagcaga
     4321 ttacgcgcag aaaaaaagga tctcaagaag atcctttgat cttttctacg gggtctgacg
     4381 ctcagtggaa cgaaaactca cgttaaggga ttttggtcat gagattatca aaaaggatct
     4441 tcacctagat ccttttaaat taaaaatgaa gttttaaatc aatctaaagt atatatgagt
     4501 aaacttggtc tgacagttac caatgcttaa tcagtgaggc acctatctca gcgatctgtc
     4561 tatttcgttc atccatagtt gcctgactcc ccgtcgtgta gataactacg atacgggagg
     4621 gcttaccatc tggccccagt gctgcaatga taccgcgaga cccacgctca ccggctccag
     4681 atttatcagc aataaaccag ccagccggaa gggccgagcg cagaagtggt cctgcaactt
     4741 tatccgcctc catccagtct attaattgtt gccgggaagc tagagtaagt agttcgccag
     4801 ttaatagttt gcgcaacgtt gttgccattg ctacaggcat cgtggtgtca cgctcgtcgt
     4861 ttggtatggc ttcattcagc tccggttccc aacgatcaag gcgagttaca tgatccccca
     4921 tgttgtgcaa aaaagcggtt agctccttcg gtcctccgat cgttgtcaga agtaagttgg
     4981 ccgcagtgtt atcactcatg gttatggcag cactgcataa ttctcttact gtcatgccat
     5041 ccgtaagatg cttttctgtg actggtgagt actcaaccaa gtcattctga gaatagtgta
     5101 tgcggcgacc gagttgctct tgcccggcgt caatacggga taataccgcg ccacatagca
     5161 gaactttaaa agtgctcatc attggaaaac gttcttcggg gcgaaaactc tcaaggatct
     5221 taccgctgtt gagatccagt tcgatgtaac ccactcgtgc acccaactga tcttcagcat
     5281 cttttacttt caccagcgtt tctgggtgag caaaaacagg aaggcaaaat gccgcaaaaa
     5341 agggaataag ggcgacacgg aaatgttgaa tactcatact cttccttttt caatattatt
     5401 gaagcattta tcagggttat tgtctcatga gcggatacat atttgaatgt atttagaaaa
     5461 ataaacaaat aggggttccg cgcacatttc cccgaaaagt gccacctg
//

载体图谱质粒图谱pdf版和相关资料下载

载体质粒应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng 沪ICP备2021037978号-1
欢迎您的访问和咨询....
